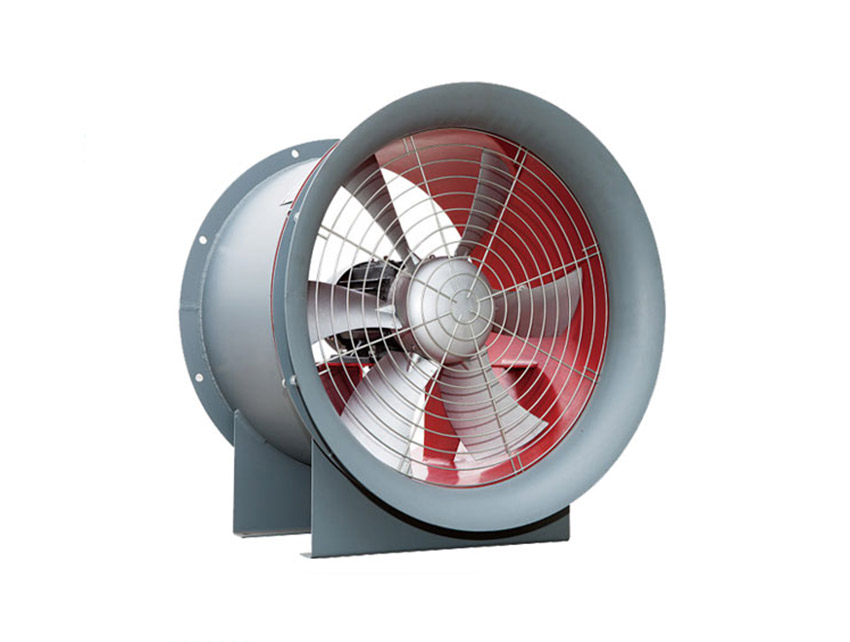

T35-11BT35-11 Series Axial Flow Fan

T35-11,BT35-11 series axial flow fan can be used as ventilator or heat dissipation in general factory, warehouse ,office and residence.

Inquire Now Next Product

T35-11,BT35-11 series axial flow fan is the substitute products of 30K4 type. It adopts tubular type wheel structure, and its motor use remodel design, which reduce the flow losses in structure,making its design and performance more excellent.

It can be used as ventilator or heat dissipation in general factory, warehouse ,office and residence. If take off the cover of the fan ,it can be used as free fan. It can also be installed in connections with intervals in long air-cooling exhaust steam pipe to improve the wind presssure of the pipe. BT35-11 type anti-explosion axial flow fan adopts anti-explosion device, and choose explosion-proof motor. Therefore, it can be installed in places which contain non-corrosive flammable and explosive gas as anti-explosion ventilation equipment.

Anti-explosion or anti-corrosion axial flow fan, If you need, please inform us in advance.

T35-11 series axial flow fan
Machine No.	Speed r/min	Flow m3/h	Total pressure Pa	Motor power kW
2.8	2800	1182-2682	119-173	0.12-0.37
2.8	1400	592-1344	29.8-43.4	0.025-0.04
3.15	2800	1877-4012	158.6-230.3	0.18-0.55
3.15	1400	938-2006	39.6-57.5	0.025-0.09
3.55	2800	2687-5746	201.5-292.3	0.37-1.1
3.55	1400	1346-2878	50.3-73.1	0.04-0.12
4	2800	3843-8207	255.7-371.2	0.75-2.2
4	1400	1924-4114	64-92.8	0.09-0.25
4.5	1400	2740-5858	80.9-117.5	0.12-0.37
5	1400	4141-8412	105-153.4	0.25-0.75
5	910	2691-5468	44.1-64.5	0.37
5.6	1400	5817-11817	131.4-192	0.37-1.1
5.6	910	3781-7681	55.5-81.1	0.37
6.3	1450	8579-17426	178.3-260.7	0.75-2.2
6.3	935	5532-11234	74.2-108.4	0.37-0.75
7.1	1450	12280-24944	226.5-331.1	1.5-4
7.1	935	7918-16084	94.2-137.7	0.75-1.1
8	1450	17567-35682	287.6-420.3	3-7.5
8	960	11630-23624	126.1-184.2	0.75-2.2
9	960	16560-33937	159.5-233.2	1.5-4
10	960	22716-46141	197-287.9	2.2-7.5
11.2	960	31914-64825	247-361.1	4-11
