Hanger Chain Shot Blasting Machine Combined A Spray Coating Chamber Finished Installation And Commissioning In Australia

Jan 08, 2018

Customer name: Oliver Technologies Pty Ltd

Country of end user: Australia

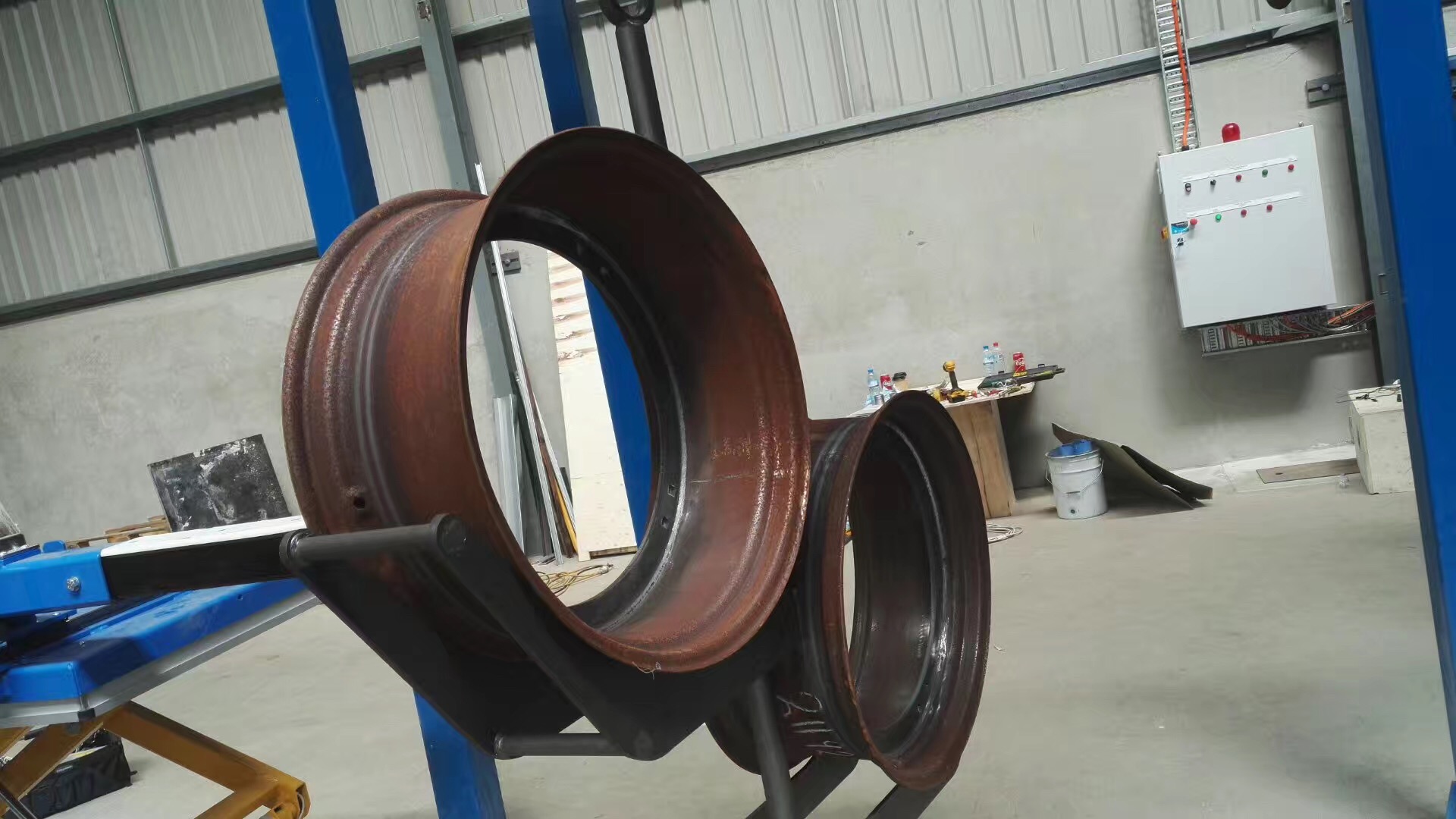

Name: tractor wheels

Material: steel

The max size of workpiece : Φ 1700 x 1500

Unit weight : ≤400Kg/pc

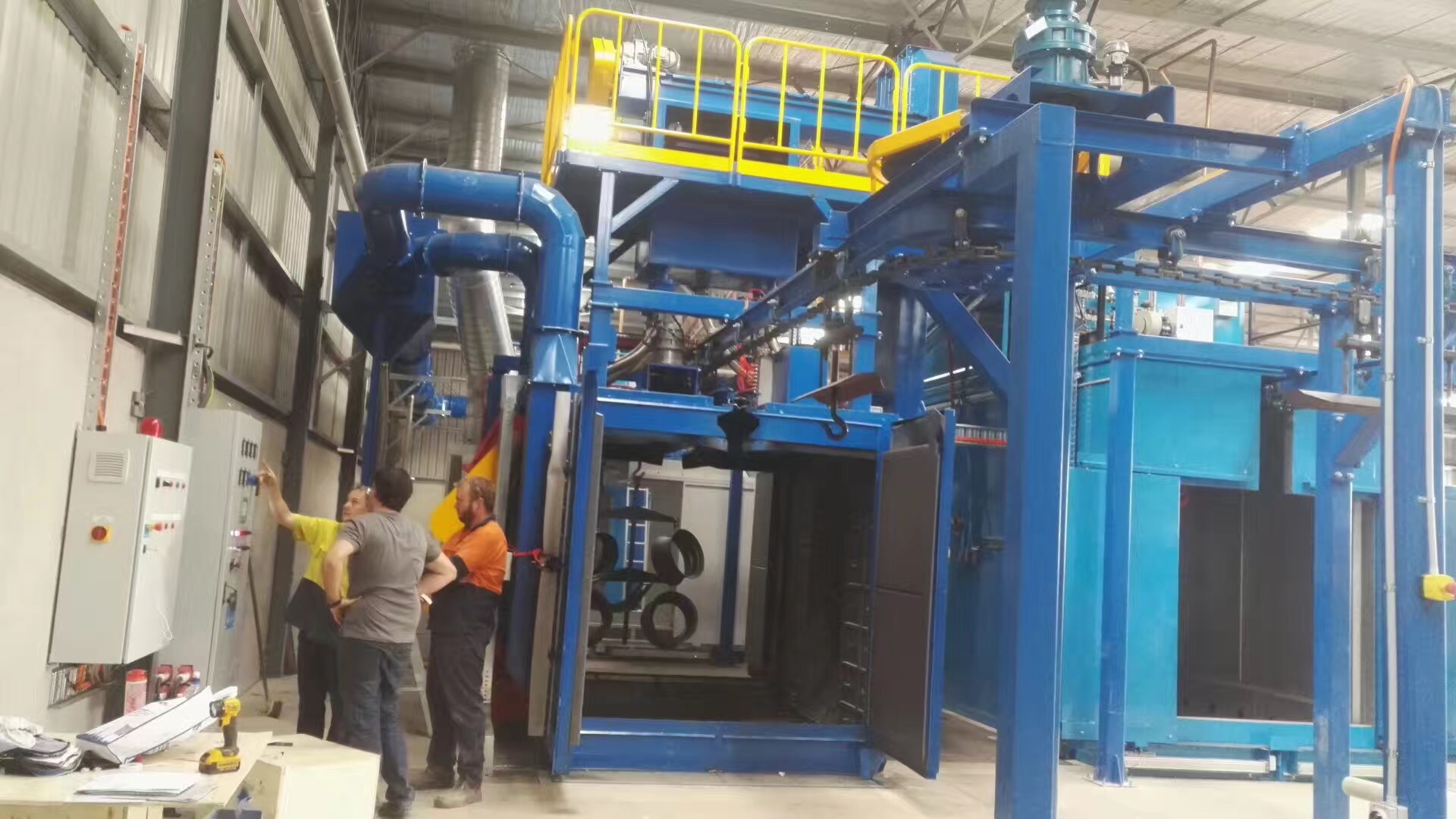

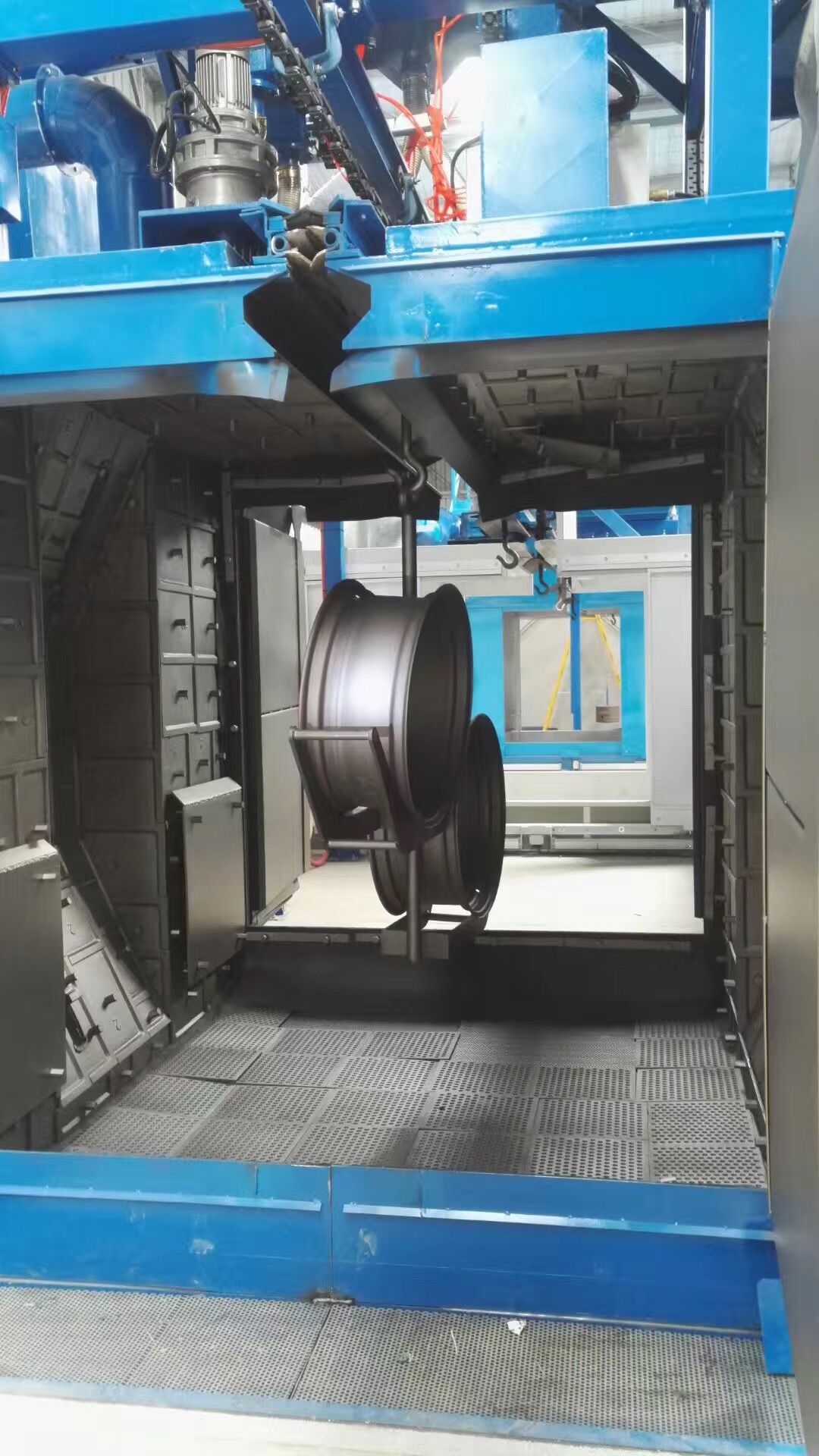

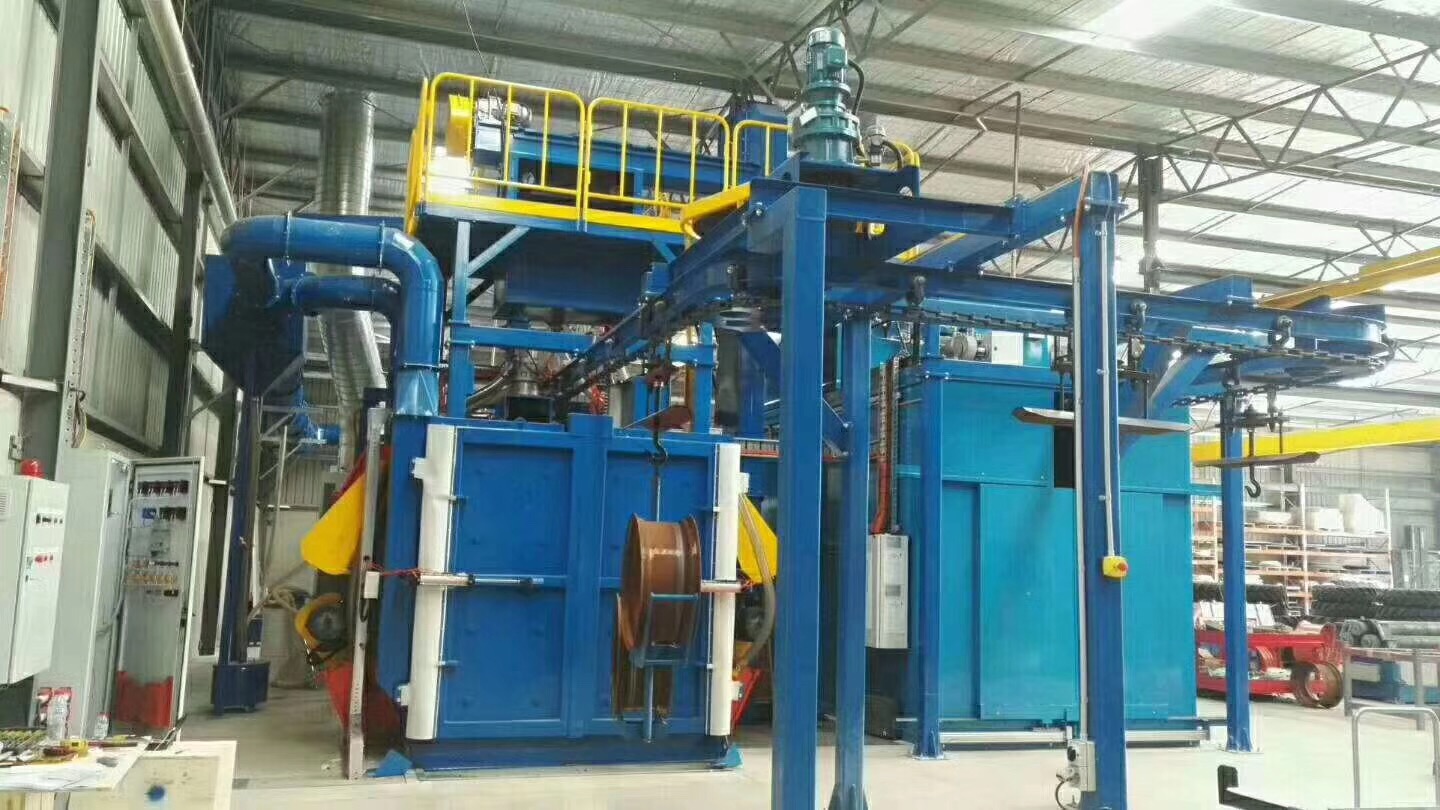

Hanger Chain Shot Blasting Machine

Hanger Chain Shot Blasting Machine China

Machine capacity:

Machine blasting chamber size: L×W×H=3000×2300×2500mm

And cleaning scope : Φ1700 xH1500mm (each batch)

Catenary chain length: ~48000mm (including blasting and spraying system)

Hanger quantity: 14 hooks in total

Weight capacity of each hook: ≤400Kg

Hook space between: 3200mm

Running speed of catenary chain: 8m/min

Shot Blasting Machine China

Description: this is a mixed job combined with shot blasting and spray coating line. We did this job together with our local partner who makes spray systems. We arrange the whole blasting system and hanger chain system(for both blasting and spraying system) and related electric control system.

The Hanger Chain Shot Blasting Machine can finish blasting in 5-10 minutes but need to wait the spray system which need 15minutes per batch.

It took less than 10weeks we finish production and design, and our

Our partner did a great job for mechanism installation and we sent our electrician there at site to finish the commissioning with 1 week.

Shot Blasting Equipment

Shot Blasting Machine Supplier

Time of acceptance: October of 2017
