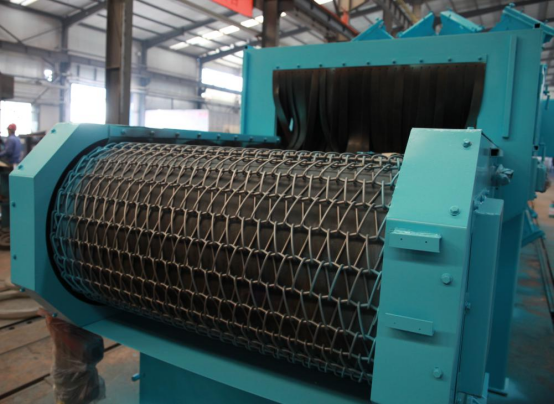

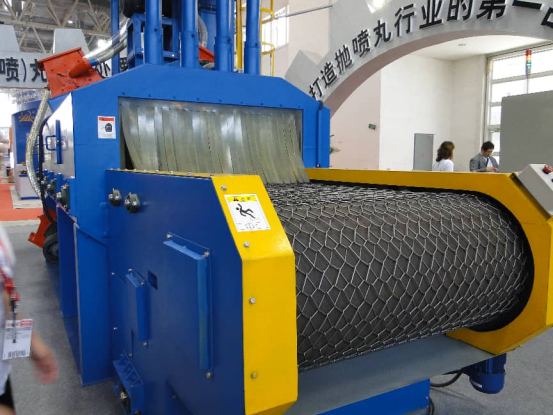

Application of Mesh Belt Pass-through Shot Blasting Machine in Aluminum Die Casting Industry

The mesh belt pass-through shot blasting machine equipment offers six major advantages as follows: First, it delivers high operational safety; second, workpieces achieve superior surface quality after shot blasting; third, it boasts high production efficiency; fourth, its maintenance cost is low; fifth, it can meet your company's environmental protection requirements; sixth, we provide a full-cycle customized service system covering pre-sales, in-sales and after-sales stages. Therefore, it perfectly matches your company's current production demands.

Detailed Introduction:

First,This shot blasting machine features outstanding operational safety.

It adopts a full explosion-proof design, consisting of an explosion-proof electric control cabinet, explosion-proof cables, dust explosion-proof motors and reducers, with the core being its explosion-proof dust removal system. The dust collector is a cartridge dust collector equipped with flame-retardant and anti-static filter cartridges. A flameless venting device is integrated into the main body of the dust collector, and an explosion isolation valve is installed on the main pipeline. To prevent explosions caused by dust accumulation, the pipeline wind speed is maintained at no less than 23 meters per second, and a star unloader is fitted beneath the dust collector for continuous ash discharge. This minimizes the risks of dust combustion and explosion to the greatest extent, ensuring maximum safety. All filter cartridges, flameless venting devices and explosion isolation valves sourced and manufactured by us are certified standard products. In addition, an anemometer is mounted on the pipeline to display real-time pipeline wind speed on the touch screen.

Second,Workpieces processed by our shot blasting machine achieve excellent surface quality and a reduced reject rate.

The blast wheel motors are controlled by variable frequency drives, with multiple preset programs configured on the touch screen.

For special-shaped workpieces such as thin-walled parts and long strips, users can select low-frequency programs with weak blasting force to eliminate workpiece deformation after shot blasting. A 3D simulated blasting zone enables full utilization of steel shots, eliminates blind blasting areas, and delivers more uniform surface treatment on workpieces. This method enhances workpiece surface quality and drastically cuts down the reject rate.

Third,Our mesh belt pass-through shot blasting cleaning machine delivers high production efficiency and low operating costs.

Designed for continuous pass-through production, this machine can be connected to upstream and downstream processes in an automated production line. It eliminates manual loading/unloading and material handling procedures, reducing labor and logistics costs while cutting transfer time, thereby significantly boosting overall production efficiency.

Fourth，This mesh belt shot blasting machine features low maintenance costs.

Its blasting chamber is protected by 12mm rolled Mn13 wear plates manufactured by Taiyuan Iron & Steel, installed via integral welding. There are no gaps between wear plates for comprehensive protection, delivering a service life of over 15,000 hours. The wear plates require virtually no maintenance. We can provide procurement records and material certificates from Taiyuan Iron & Steel to guarantee no substandard steel plates from small manufacturers are used.

Fifth，Our shot blasting machines also meet environmental protection requirements.

The dust emission of this model is ≤10mg/m³, and dust concentration at workstations is ≤5mg/m³. I noticed photovoltaic panels installed on the roof of your workshop, which will face severe pollution issues in the long run. Tailored to your on-site conditions, we recommend an ultra-low emission solution that can effectively mitigate contamination on photovoltaic panels. Through precise calculation of dust removal air volume, the system prevents dust leakage without extracting blasting media, thus avoiding pollution inside the workshop and fully satisfying environmental compliance demands. One of our previous clients operated shot blasting machines with substandard emissions; their rooftop photovoltaic panels became heavily contaminated within merely ten days and required frequent cleaning. After switching to our shot blasting machines, panel cleaning is only needed once every six months. We hold dust inspection reports issued by authoritative third-party testing institutions. Images of our clients’ workshop operation sites demonstrate an exceptionally clean working environment.

Sixth，We boast a full-cycle customized service system covering pre-sales, in-sales and after-sales stages.

(1) Pre-sales: Dedicated technical teams conduct in-depth communication to identify your demands, deliver customized technical solutions tailored to actual production scenarios, and offer model selection consultation and feasibility analysis. Our company boasts strong R&D capabilities, with 11 senior engineers, 25 engineers and 60 professional R&D staff who are capable of independent design and technological innovation. Our core designers have over 13 years of industry experience and have led the overall planning and design of numerous large-scale projects for central enterprises, state-owned enterprises and listed companies.

(2) In-sales: Specialized staff keep you updated on equipment production progress in real time. Professional construction teams provide on-site installation and precise commissioning, along with hands-on operation training to help your staff master the equipment quickly. All construction team members hold special construction qualifications and possess extensive practical experience to guarantee efficient and high-quality installation and commissioning. Our company has obtained the Five-Star After-sales Service Certification, meaning our service standards are officially recognized by authoritative institutions.

(3) After-sales: A dedicated service team responds to malfunction handling requests 24/7. We conduct regular equipment inspections and maintenance, and provide free refresher technical training as well as equipment upgrade support. We have established an independent service subsidiary and developed the Kaitai E-Repair APP to streamline full-process service delivery, enabling faster response and more targeted support. We have received more than 50 thank-you letters and silk banners from clients across various industries, proving our service satisfaction has stood the test of the market.

In summary, this mesh belt pass-through shot blasting cleaning machine features high operational safety, superior workpiece surface quality after blasting, high production efficiency and low maintenance costs. It can also meet enterprises' environmental protection requirements. Supported by our premium full-cycle service system spanning pre-sales, in-sales and after-sales, it is an excellent asset to boost your product competitiveness and optimize your production environment!
