Complete Guide to Shot Blasting Machine Selection: Precisely Match Requirements, Choose the Right Equipment to Improve Efficiency and Reduce Costs

In industries such as machinery manufacturing, steel structure and casting, shot blasting machines serve as core equipment for workpiece surface cleaning, rust removal, scale elimination and strengthening. Selecting the right shot blasting machine can not only guarantee workpiece surface quality, but also greatly boost production efficiency and cut operating costs. As an enterprise with years‑long expertise in surface‑treatment equipment, Shandong Kaitai combines industry experience and market demands to present a professional shot‑blasting machine selection guide, helping enterprises accurately match equipment and avoid selection pitfalls.

I. Core of Equipment Selection: Prioritize Workpiece Characteristics, and Model Matching Is Key

The size, weight, shape and material of workpieces are primary factors determining the shot‑blasting machine model, and different models vary greatly in applicable workpiece types.

(1) Track‑type Shot Blasting Machine: The Top Choice for Batch Cleaning of Small‑sized Workpieces

Suitable workpieces: Small castings, forgings, stampings, screws, fasteners and other collision‑resistant parts, with the weight of a single workpiece generally ≤10 kg.

Core advantages: Automatic tumbling cleaning, 360‑degree dead‑angle‑free coverage, high cleaning efficiency, small footprint and high cost‑performance.

Mainstream models: Shandong Kaitai Q326, Q3210 rubber track shot blasting machines, 15GN, 28GN steel track shot blasting machines. Among them, the Q326 can process 200 kg of workpieces in a single batch, ideal for mass production of small‑sized workpieces.

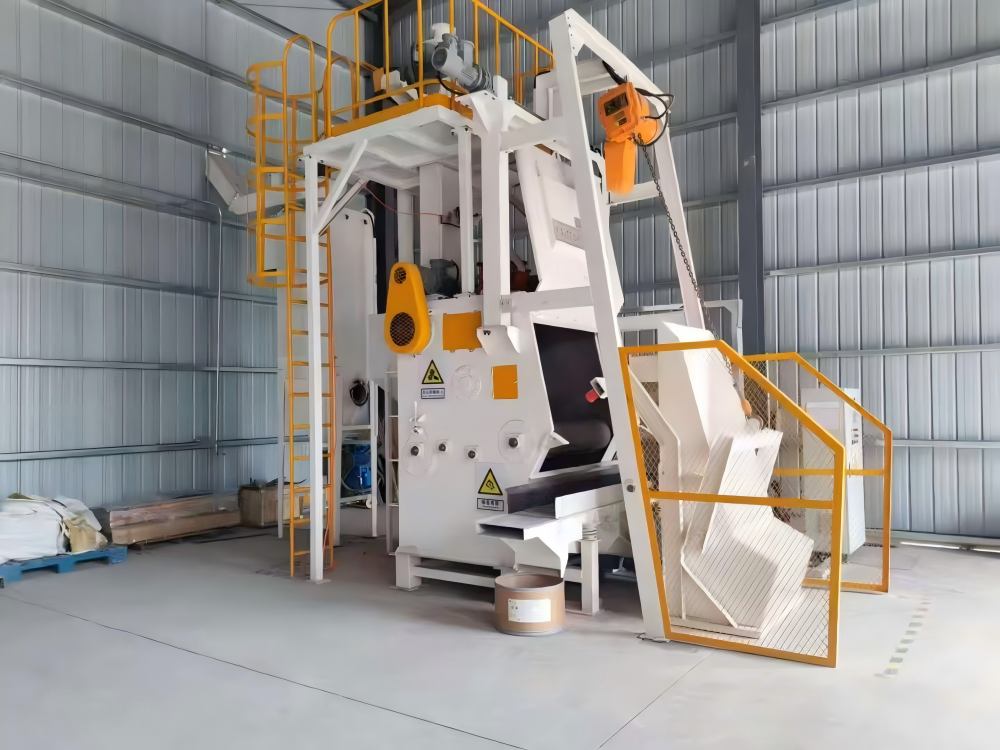

Crawler‑type shot blasting machine

(2) Hook‑type Shot Blasting Machine: Specially for large‑and‑medium‑sized / collision‑prone workpieces

Applicable workpieces: small‑and‑medium‑sized castings, forgings, die‑castings, molds, steel structural frames, valves, etc. It is especially suitable for slender, thin‑walled workpieces vulnerable to collision. Single hook load capacity: 500‑2000 kg.

Core advantages: Suspended operation, 360° workpiece rotation, no collision risk, dead‑zone‑free cleaning, suitable for multi‑variety and small‑batch production.

Mainstream models: Q378, Q3710, Q3720, etc. Customization is available according to workpiece dimensions (diameter Φ800‑Φ1500 mm, height 1200‑2000 mm). The Shandong Kaitai integrated shell‑removal and cleaning shot blasting machine (QK3722E) is better suited for investment‑casting workpieces, completing shell removal and strengthening in one single process.

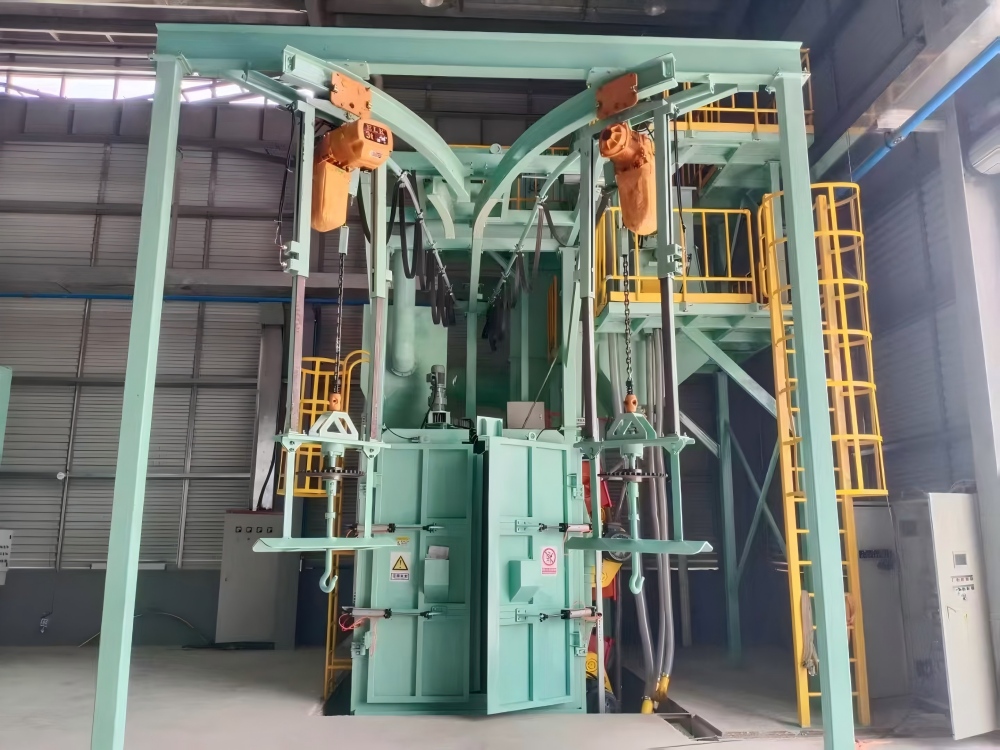

Hook‑type shot blasting machine

(3) Roller‑pass‑through Shot Blasting Machine: Mass Production for Long Strips / Profiles

Applicable Workpieces: Long strip‑shaped workpieces such as steel plates, H‑beams, angle steels, pipes and profiles. Suitable for assembly‑line production in steel structure factories and profile factories.

Core Advantages: Automatic feeding and discharging, continuous operation, extremely high cleaning efficiency, compatible with long workpieces over 6 meters, high degree of automation, and significant reduction in labor costs.

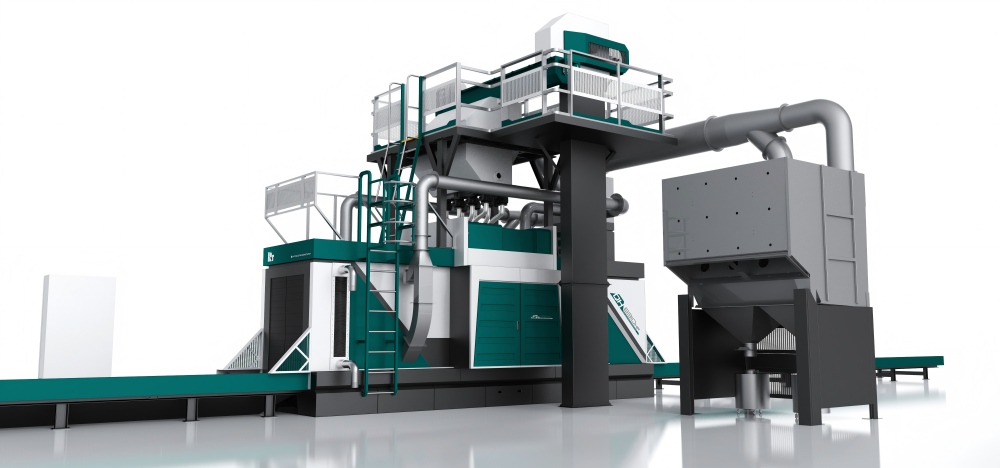

Diagram of Roller‑table Shot Blasting Cleaning Machine for Steel Plates, Sheets and Section Steel Angles

(4) Trolley‑type Shot Blasting Machine: Exclusively for Extra‑Heavy and Oversized Workpieces

Applicable workpieces: Wind power components, machine tool bases, pressure vessels, heavy steel structures, etc. Single‑piece weight can reach dozens of tons with large dimensions and heavy mass.

Core advantages: High load‑bearing capacity. The trolley can move into and out of the blasting chamber and rotate on its own to ensure all‑round cleaning of workpieces. Specially designed for heavy‑duty workpieces with a robust and durable structure.

(5) Manipulator‑type Shot Blasting Machine: Efficient Cleaning for Complex and Precision Workpieces

Applicable workpieces: Medium‑and‑small‑sized precision castings with complex shapes and varied dimensions. Maximum workpiece dimension: 800×400×300 mm; single‑piece weight ≤180 kg.

Core advantages: Compatible with various workpieces without fixture replacement. Good shot containment and thorough cleaning. Fully‑automatic control via PLC system with production efficiency up to 60 cycles per hour.

(6) Special Shot Blasting Machine for Outer Surfaces of Steel Pipes: Dedicated to Rust Removal on Pipe Outer Surfaces

Applicable workpieces: Various seamless steel pipes, welded steel pipes, round pipes, oil pipes, gas pipes, base materials for galvanized pipes, etc. Suitable for outer‑surface cleaning of metal pipes of different diameters and lengths. Widely used in pipe manufacturing, anti‑corrosion processing, and oil‑gas equipment industries.

Core advantages: Adopts V‑roller table conveyance. Pipes rotate and advance automatically to achieve 360‑degree dead‑zone‑free full‑coverage cleaning of outer surfaces, effectively removing outer‑surface scale, rust and welding slag. The machine features compact layout and stable operation, supports automatic loading and unloading, and delivers uniform cleaning precision. It can steadily meet the Sa2.5 anti‑corrosion pretreatment standard and adapts to continuous assembly‑line operation.

Mainstream model: Shandong Kaitai QGW‑series Special Shot Blasting Machine for Outer Surfaces of Steel Pipes. Multi‑impeller layout models can be customized according to customers’ requirements on pipe diameter, pipe length and production capacity, suitable for large‑batch anti‑corrosion pretreatment production lines for pipes.

(7) Special Shot‑Blasting Machine for Steel Pipe Inner Walls: Fine Cleaning of Pipe Inner Bores

Suitable workpieces: hydraulic steel pipes, precision seamless pipes, high‑pressure oil tubes, heat‑exchanger tubes, slender hollow pipes, etc. It performs in‑depth cleaning of rust, scale, oil stains and impurities on pipe inner walls, serving as special‑purpose equipment for precision pipe processing and anti‑corrosion treatment of high‑pressure pipelines.

Core advantages: Equipped with a dedicated telescopic shot‑blasting mechanism that can penetrate into pipe inner bores for operation. It is compatible with both long and short pipes, addressing the pain points of incomplete inner‑wall cleaning and blind spots found in conventional equipment. The whole process is fully enclosed with zero dust leakage. Shot pellets enjoy high recycling utilization. The base material of pipe inner walls remains undamaged. It effectively improves the roughness and adhesion of pipe inner walls and guarantees the quality of subsequent spraying, galvanizing and anti‑corrosion processes.

Mainstream model: Shandong Kaitai QGN‑series shot‑blasting machines for steel pipe inner walls. They support adjustable adaptation to multiple pipe diameters and automatic program‑controlled operation, suited for mass precision finishing of pipes.

(8) Mesh‑Belt Shot‑Blasting Machine: Non‑Damaging Cleaning for Thin‑Walled Precision Workpieces

Suitable workpieces: collision‑prone and deformable workpieces such as thin‑wall castings, aluminum alloy die‑castings, stamped thin sheets, ceramic fittings and small precision structural parts. Widely applied in automotive components, aerospace and precision machinery manufacturing sectors.

Core advantages: Adopts flexible metal mesh‑belt continuous conveyance. Workpieces pass through in flat laying status without tumbling or bumping, thoroughly preventing deformation and scratches on thin‑walled workpieces. Multi‑directional blast wheels are arranged symmetrically with synchronous blasting from top and bottom, delivering uniform and highly consistent surface cleaning results. Automated continuous operation ensures stable cycle time, suitable for non‑damaging cleaning and surface strengthening of large‑batch precision workpieces.

Mainstream model: Shandong Kaitai QWD‑series mesh‑belt shot‑blasting machines. Mesh‑belt speed is adjustable and shot‑blasting parameters are intelligently controllable for large‑scale production of various small precision parts.

(9) Special Shot‑Blasting Machine for Construction Machinery: Heavy‑Duty Cleaning for Heavy‑Industry Components

Suitable workpieces: heavy‑weight and high‑strength industrial components including structural parts, frames, track shoes, gear boxes, large welded assemblies and heavy‑industry stampings for excavators, loaders, cranes and other construction machinery.

Core advantages: Designed specifically for heavy‑duty working conditions. The equipment frame is reinforced and thickened, featuring high shot‑blasting power and strong impact force to rapidly remove heavy scale, multi‑layer rust and welding slag, meeting surface‑strengthening requirements for high‑strength workpieces. The equipment features impact resistance, wear resistance and low failure rate. It matches the high‑intensity and high‑load production rhythm of construction machinery, and greatly enhances the spraying adhesion and structural anti‑fatigue performance of workpieces.

Mainstream model: Custom special shot‑blasting machines by Shandong Kaitai for engineering applications. The quantity of blast wheels, conveying load capacity and chamber specifications can be customized according to the dimension, weight and cleaning difficulty of construction‑machinery components to fit various heavy‑industry production lines.

(10) Overhead Monorail Shot‑Blasting Machine: High‑Volume Mass Production for Suspended Workpieces

Suitable workpieces: various suspendable small‑and‑medium‑sized cast‑forged parts, stampings, valves, auto‑parts components, thin‑walled slender structural parts, etc. Suited for multi‑variety and large‑batch continuous production, it is mainstream mass‑production equipment for auto‑parts, hardware and foundry industries.

Core advantages: Adopts accumulating overhead monorail conveyance supporting both continuous‑run and step‑run modes. Automatic loading, fixed‑point shot blasting and automatic unloading can be realized without frequent manual loading and unloading, doubling production efficiency. Workpieces operate in suspended status with no risk of collision‑induced deformation. 360° rotary blasting achieves dead‑zone‑free cleaning for mass‑processing of collision‑sensitive and deformable workpieces. A pit‑free optional design enables convenient installation, low infrastructure cost and stable, durable operation.

Mainstream model: Shandong Kaitai Q58‑series overhead monorail shot‑blasting machines. Single‑hanger load capacity can be customized as required, supporting multi‑station simultaneous operation for automated assembly‑line layouts in medium‑to‑large‑scale factories.

II. On‑demand Matching: Finalize Core Configurations Based on Production Requirements

After confirming the machine model, refine equipment configurations from three dimensions: production batch size, cleaning objectives and workpiece material, so as to avoid excessive or insufficient functions.

(1) Select Automation Level According to Production Batch and Cycle Time

Small‑batch, multi‑variety production: Prioritize hook‑type and rotary‑table types. They feature high flexibility and convenient model changeover, suitable for producing workpieces of multiple specifications.

Large‑batch, high‑cycle‑time production: Adopt crawler‑type, roller‑pass‑through and overhead‑chain‑pass‑through types. They enable continuous automated operation, reduce manual intervention and boost production capacity.

Sufficient budget and pursuit of intelligence: Choose models with full‑automatic PLC control. Parameters can be set with one‑click for automatic operation and fault alarm. They are user‑friendly for novice operators and fit modern factories.

(2) Determine Equipment Parameters Based on Cleaning Objectives

- Basic rust removal / scale removal: Standard configurations are adequate with a moderate shot‑blasting output to meet Sa2.5 surface requirements.

Pre‑treatment before spraying: Achieve specified surface roughness (Sa value) with uniform blasting and high coverage. Prefer equipment with well‑arranged blasting heads and stable blasting performance.

Surface strengthening (improving fatigue strength): Precisely control shot‑blasting intensity and coverage. Select models with adjustable shot‑blasting output and stable parameters to prevent over‑blasting or under‑blasting.

(3) Select Abrasives and Wear‑resistant Configurations According to Workpiece Materials

Carbon steel / ordinary castings: Use cast steel shots with standard wear‑resistant liners (65‑manganese steel plates) for equipment.

Alloy steel / high‑strength castings: Adopt high‑hardness steel shots. Upgrade the inner‑cavity liners to Mn13 rolled manganese steel plates or wear‑resistant cast iron to extend service life.

Non‑ferrous metals such as aluminum alloy and stainless steel: Apply stainless steel shots or ceramic shots with controllable blasting force to prevent damage to workpiece surfaces.

III. Quality Control: Core Components Determine Equipment Service Life and Efficiency

The core components of a shot‑blasting machine directly affect cleaning performance, failure rate and service life. The following configurations should be prioritized during model selection.

(1) Shot‑blasting Wheel: the "Heart" of the Equipment; Prefer High‑efficiency and Wear‑resistant Types

As the core power component, the shot‑blasting wheel determines shot blasting capacity and projectile velocity. Shot‑blasting machines from Shandong Kaitai adopt high‑efficiency direct‑motor‑coupled shot‑blasting wheels with optional power ranging from 7.5‑30 kW and a shot blasting capacity of 120‑220 kg/min. Labyrinth‑type protection is applied to end and top guard plates for tight sealing, preventing projectiles from piercing the housing and cutting energy consumption by 10%‑15%.

(2) Guard Plate Material: Wear‑resistant and Durable to Cut Maintenance Costs

Inner‑cavity guard plates are wearing parts, whose material quality dictates maintenance frequency. Premium equipment uses Mn13 rolled manganese steel plates or wear‑resistant cast iron for superior wear resistance and long service life. Ordinary models mostly adopt 65‑manganese steel plates suitable for light‑duty working conditions.

(3) Dust‑removal System: Meet Environmental‑protection Standards to Secure Workshop Conditions

Environmental compliance is a production necessity. Priority should be given to pulse cartridge dust collectors or bag‑house dust collectors, which deliver thorough dust collection, compliant emissions and low noise and avoid risks of environmental‑protection rectification. Increased air volume of the dust collector is required for casting sand‑cleaning operations to guarantee complete dust separation.

(4) Shot Recycling System: High‑efficiency Separation to Reduce Shot Waste

High‑quality separators enable precise separation of projectiles from impurities, lowering shot loss and preventing impurity‑induced abrasion to shot‑blasting wheels. Equipment from Shandong Kaitai is equipped with high‑efficiency air‑separation separators featuring high separation efficiency for diverse working conditions.
