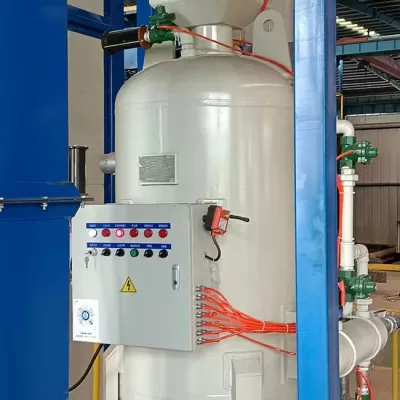

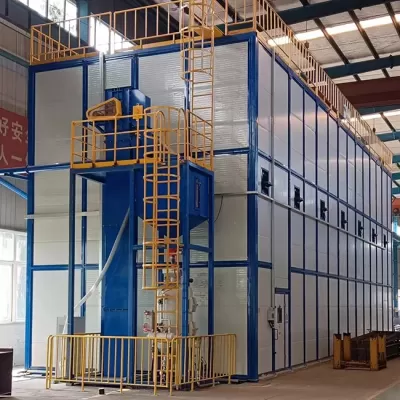

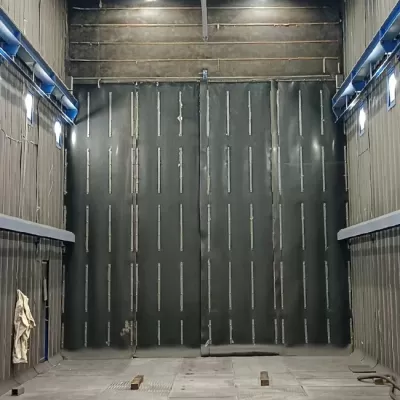

Mainly Consist of the Following Parts Blasting room: frame of the room, steel plates or rock wool plate, protection liners around the internal walls, etc. Partial recovery system: partial hopper and grids, abrasive recovery system including partial screw conveyor or belt conveyor, bucket elevator, separator, silo and abrasive valves, etc. Dust removal system: Dust collector, ducting, ventilation fan, chimney etc. Transporting mechanism: Battery trolley or a trolley system driven by reducer, rails; Illumination system: LED lights, strong protection glass, etc. 2D or 3D trolley for operators Electric control system: control cabinet, cable and cable tray from the motors to the control cabinet, sensors and switches, etc.
Characteristics for Partial Recovery Sand Blasting Room
1. Easy Maintenance:Simple structure, less maintenance points
2. Low Investment:Low purchasing cost, suitable for a small volume of blasting work
3. Abrasive Saving:No need to put a big amount of abrasives to run the system
4. Customized Design:A variety of arrangements is available, can be customized according to requirement.
The blasting room is widely used in industrial processes, such as:
1.Metal processing industry: to remove the rust, oxide skin, etc. to improve the quality and anti-corrosion ability of the metal surface.
2.Automotive industry: widely used for the pre-treatment of automobile coaches, such as old paint removal, improving the surface roughness, etc. to provide high-quality surface conditions for the subsequent coating process.
3.Aerospace, shipbuilding, petrochemical, and other industries: In these industries, sandblasting rooms can provide efficient solutions for the surface treatment of a variety of complex workpieces.
