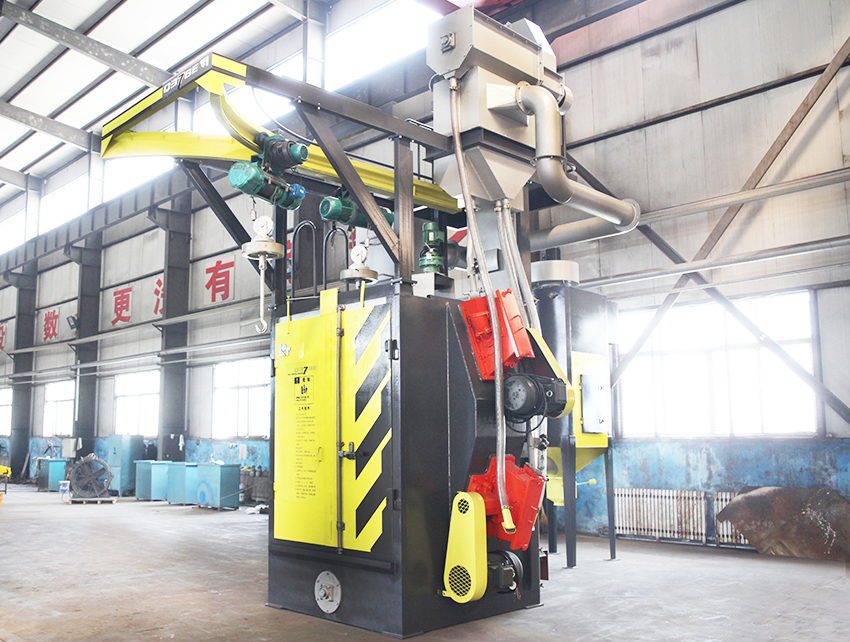

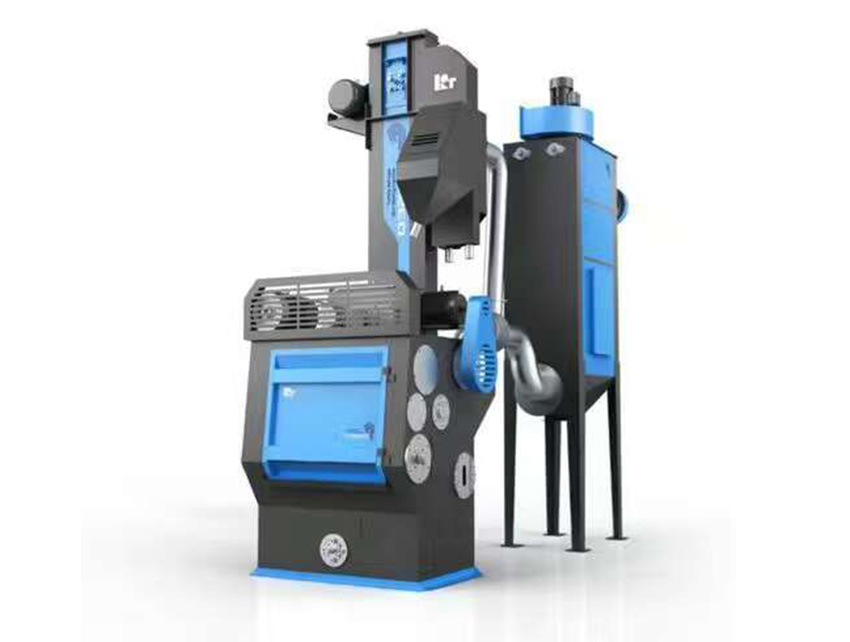

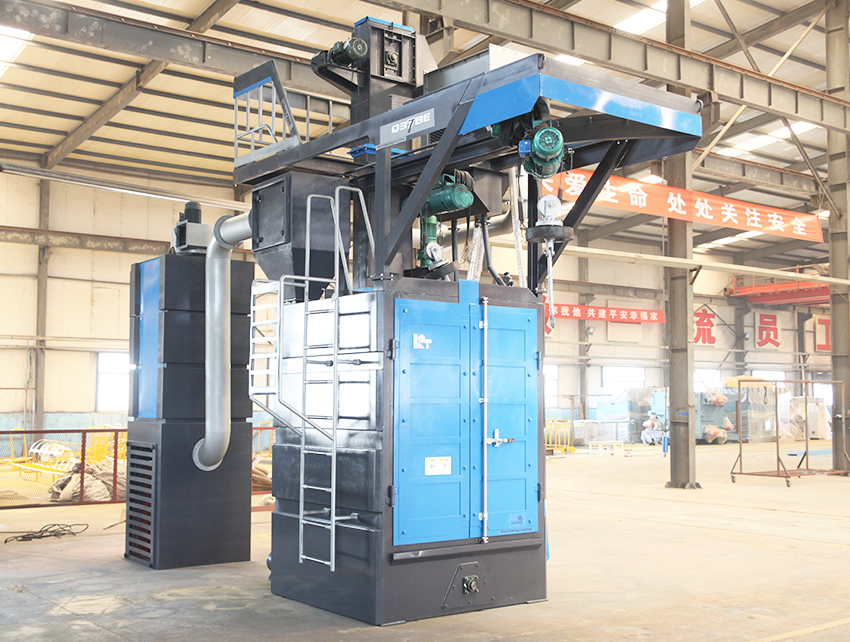

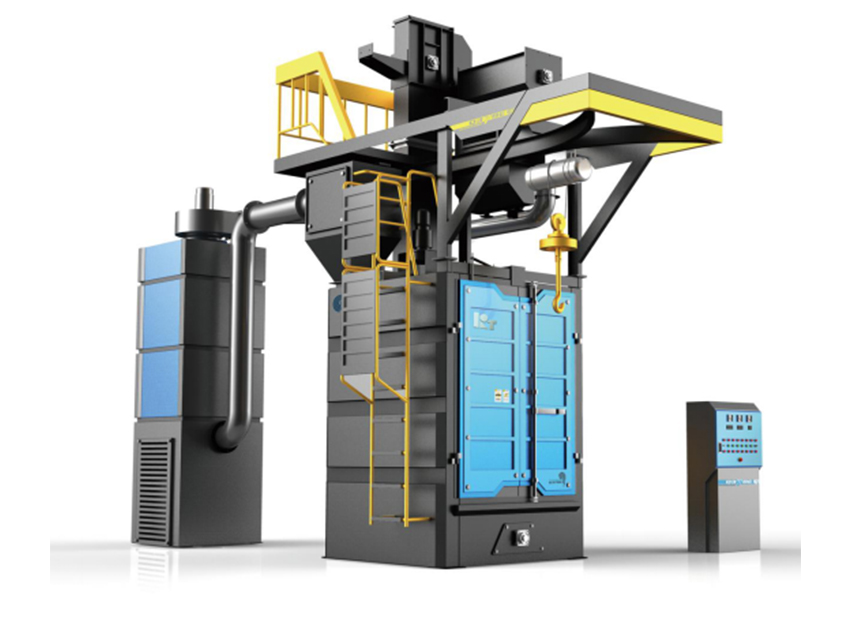

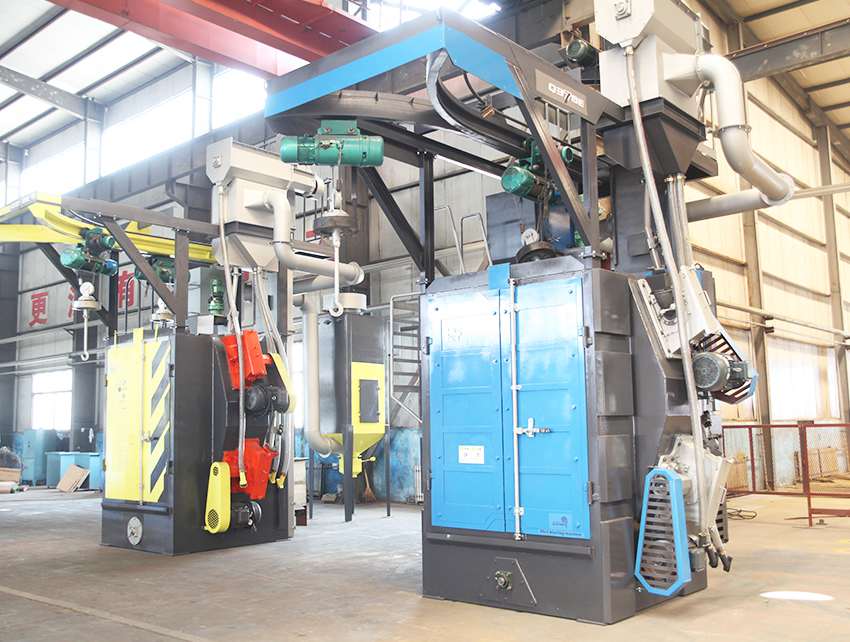

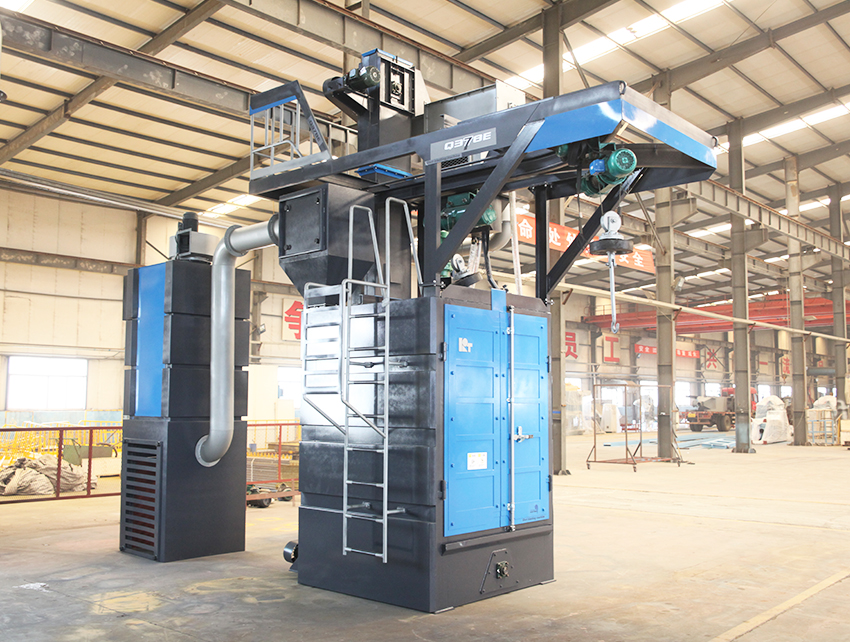

Production Application:
It is suitable for surface cleaning of medium-small casting.Sometimes it also replace trolley type shot blasting machine for cleaning bigger casting along with increasing of loading of hook.
Specification: Q376、Q378、Q3710、Q3720、Q3730、Q3750、Q3780
| Item | Unit | Q376 | Q378 | Q3710 | Q3720 | Q3730 | Q3750 | Q3780 |
| Diameter of cleaning workpiece | mm | Ø600 | Ø800 | Ø800 | Ø1400 | Ø1600 | Ø1800 | Ø2000 |
| Height of cleaning workpiece | mm | 1100 | 1500 | 1850 | 2300 | 2200 | 2500 | 3000 |
| Weight of single hook | kg | 600 | 800 | 1000 | 2000 | 3000 | 5000 | 8000 |
| blasting capacity | kg/min | 2*120 | 2*160 | 2*250 | 3*250 | 3*250 | 4*250 | 4*250 |
| The time of cleaning one hook | min | 16 | 14 | 14 | 14 | 14 | ？ | ？ |
| Lifting capacity of elevator | t/h | 15 | 20 | 30 | 45 | 45 | 60 | 60 |
| Separation quantity of separator | t/h | 15 | 20 | 30 | 45 | 45 | 60 | 60 |
| Ventilation volume | m3/h | 2800 | 8300 | 9000 | 15000 | 15000 | 18000 | 18000 |
| Power(it is not include dust removing) | kw | 22 | 30 | 36.55 | 61.27 | 64.4 | 78.4 | 81.5 |
